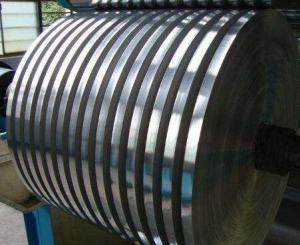

AA1050 Aluminium strip for transformer
Aluminium strip for transformer winding 1050-O
(1)Chemical Composition
| Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Others |
Al. |
| |
|
|
|
|
|
|
|
Individual |
Total |
|
| Max. 0.25 |
Max.
0.40 |
Max.
0.05 |
Max.
0.05 |
Max.
0.05 |
— |
Max.
0.05 |
Max.
0.03 |
Max.
0.03 |
— |
Min. 99.50 |
(2)Mechanical properties and electric conductivity
| Thickness(mm) |
Tensile Strength(Mpa) |
Elongation
% |
Bending 180 buckling inside radius |
Electric conductivity at 20 |
| Over 0.3 to 0.5 |
Min. 60 Max. 90 |
20 min. |
Close contact |
62.5 min. |
| Over 0.5 to 0.8 |
25 min. |
| Over 0.8 to 1.3 |
30 min. |
| Over 1.3 to 2.0 |
35 min. |
| Over 2.0 to 2.5 |
|
35 min |
|
|
(3) Application :transformer strip for transformer winding 1050 can be used for variable transformer like low or high voltage transformer winding,etc.
transfer strip for electrical coil application ranges from 0.3mm to 2.5mm, the alloy 1050(99.50% aluminum) can be used to meet the minimum industry requirements for strip conductor, is closely controlled to assure smooth, substantially burr-free edges and strip-size availabilities are in capacities exactly equivalent to those of standard copper wire sizes.
Our advantages:
1, Since 2008, we have rich experience in this industry in China;
2, Good reputation in the production of aluminium/aluminum plate areas;
3, We start our productions from aluminum ingot,so we can control the quality as well;
4, We have our own development department for new material research;
5, Good experience and cooperation with big clients in the world;
6, With Certificate ISO9001-2008;
7, High performance cost ratio;
8, Fast delivery time;
9, Customized orders available;
10, Good communication skills, and good service and understandings for customers.
